Name: GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
Brand: GALAXY
Price: 1 USD

Brand Name : GALAXY

Model Number : GP100

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets per month

Delivery Time : 10-30days

Packaging Details : Carton

Max pull force : 100kN

Diesel : Yanmar Japan 49.2hp/36kw

Engine : Yanmar Japan

Overall dimension (length*width*height) : 4000*2200*1800mm

Cooling system : Water

Hydraulic valve : Sun USA

Contact Now

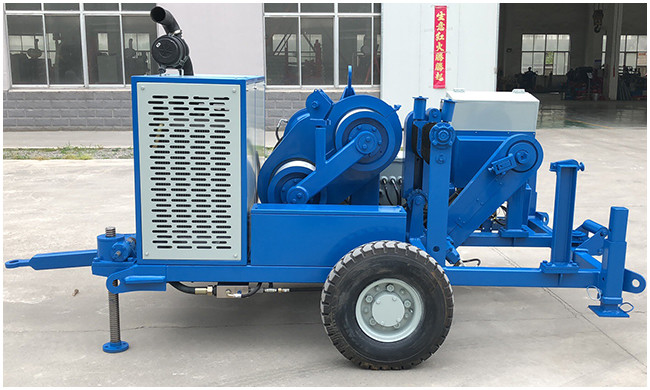

Cable Pulling Equipment GP100 Yanmar Japan Puller Max Pull Force: 100kN

Model	GP100
Max pull force	100kN
Continuous pull effort	80kN
Max speed at Continuous pull	17m/min
Max speed	83m/min
Pull at max speed	15kN
Capstans	350x650mm
Maximum cable diameter	80 mm
Total weight	3350kg
Overall dimension (lengthwidthheight)	400022001800mm
Diesel	Yanmar Japan 49.2hp/36kw
Cooling system	Water
Electrical system	12V
Engine	Yanmar Japan
Hydraulic motor	Rexroth German
Hydraulic pump	Danfoss
Hydraulic meter	German
Operating handle	Bondioli & Pavesi Italy
Hydraulic valve	Sun USA

Configuration

Control panel with instruments for hydraulic system and engine.
Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)
Large channel steel capstan with anti-skid device
Hydraulic oil cooling system
In the case of over pull, the preset for maximum tension can stop the puller
The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command

Additional Devices

Lighting system for the trailer
Rear tension roller with hydraulic drive
Chassis, with damping shaft, tires, traction lever, Trailer for towing at max speed of 30 km/h
Digital speed and meter counter (extra charge)

GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
